Züm-AP and Züm-SP FOLDING SHOWER COMMODE CHAIR

With optional travel kit

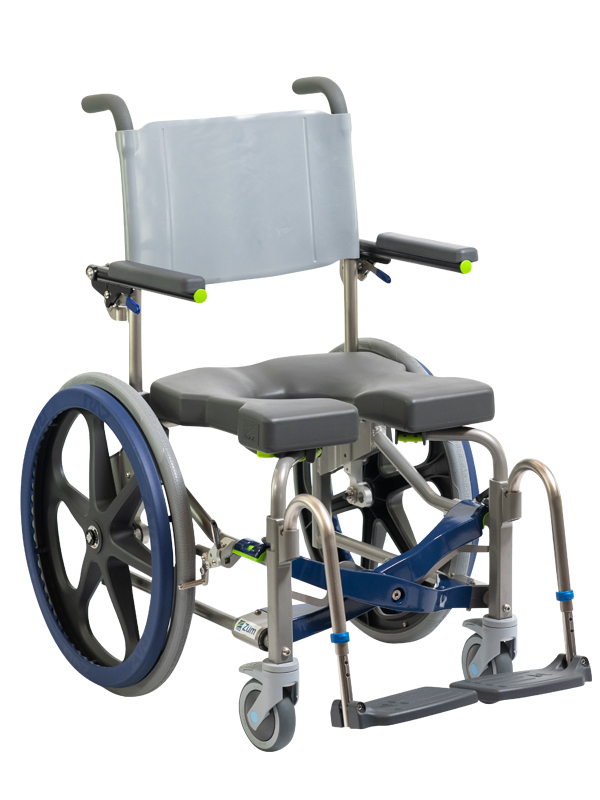

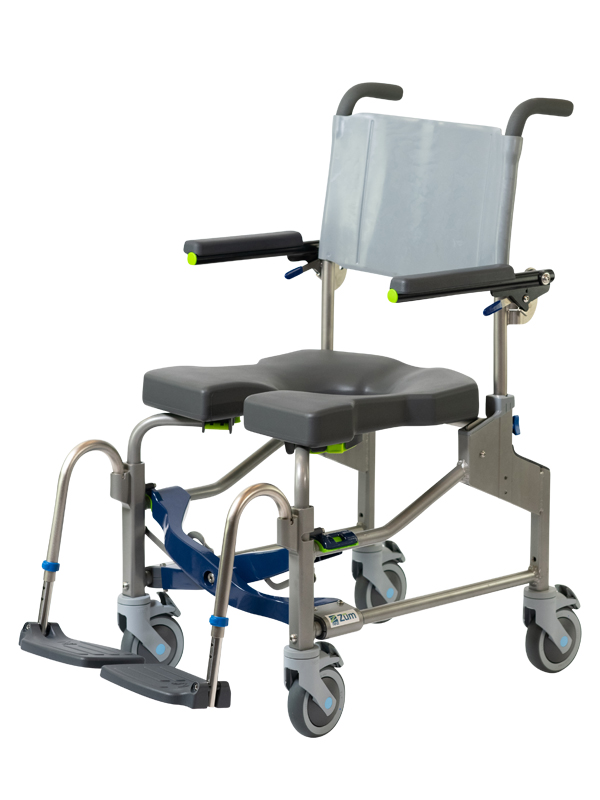

The Züm-AP (Attendant Propelled) and Züm-SP (Self-Propelled) are the first folding frame mobile shower commode chairs that offer the rigidity you would expect from a premium product. The unique cross brace design allows the Züm to fit fully over a toilet for the optimal alignment of the aperture with the toilet bowl. It is now also available with a convenient travel kit for easier transport and storage.

The Züm’s unique cross-brace design provides better toilet alignment and frame rigidity. The Züm is available in two configurations: the Züm-AP (Attendant-Propel) and Züm-SP (Self-Propel).

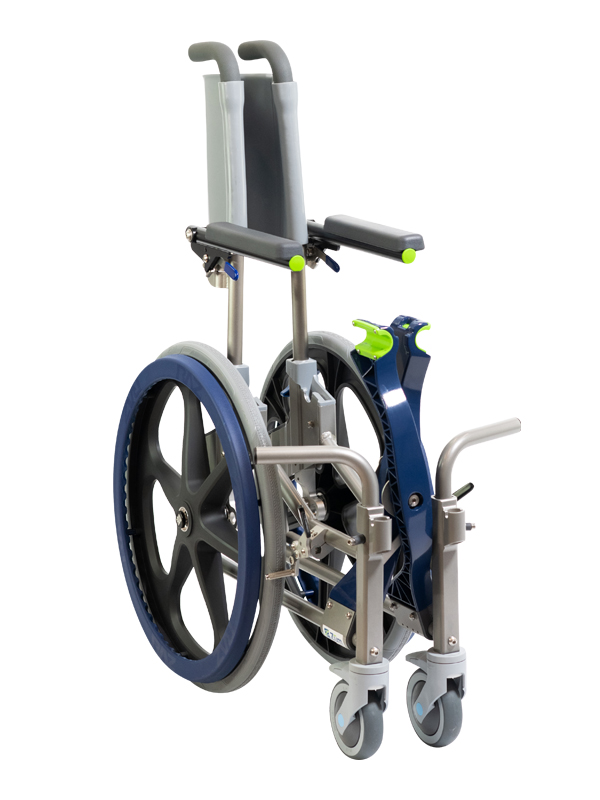

  • Unique Folding Frame: Low-profile cross brace is contoured to fit around the toilet, allowing for better rearward positioning of seat aperture over the bowl

  • Lightweight Aluminum Frame – Facilitates transportability

  • Removable back assembly for ease of transportation

  • 17″ (43cm) back height with moulded, vinyl backrest

  • Compatible with all standard-width Raz seats, which include the exclusive IPAS

  • Flip-up arms with optional locks

The Züm Travel Kit options are available now. Every kit consits of:

  • The Suitcase, for travel and storage purposes:
    • Seat bag
    • Parts bag
    • Foam insert
  • Wheel Bag (Züm-SP, can be omitted)
  • Quick Release Wheel Locks (Züm-SP)
  • Toolless, Removable Casters
  • Modular Back Support with:
    • Molded vinyl upholstery
    • Removable, wraparound arms

Züm-AP/SP Travel Assembly

Züm-AP/SP Travel Packing

Züm-AP/SP Travel Disassembly

Züm-AP/SP STANDARD FEATURES

FIXED BACK

  • Molded, flexible vinyl upholstery – suitable for infection control environments

  • Provides flip-up angle adjustable armrests

  • 18″ Back Height

MOLDED SEAT

  • Contoured for pressure reduction and pelvic stability

  • Soft integral-skin foam for comfort and durability

  • Available with open or bridged front

  • Available Sizes: 18″ W x 16″ D, 18″ W x 19″ D

ISCHIAL PELVIC ALIGNMENT SYSTEM

  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis

  • Allows centering of the aperture (opening) around the users’ ITs

  • Seat locks in place for transfers

  • Removes easily for cleaning

  • Optional spacers for anterior or posterior seat angle adjustment

ADJUSTABLE FOOTRESTS

  • Removable for transfers and cleaning

  • Swing in and out easily

  • Flip-up footplate

  • Available in regular length 16″- 20.5” and extended length 18″- 22.5”

TELESCOPING CASTER EXTENSIONS

  • Provides 4″ of seat height adjustment without the use of tools

  • Dropped front frame tube improves access over standard toilet bowls

COMMODE PAN

  • Injection-molded pan is designed for function

  • Includes a lid for splash and odor control

  • Wide handle angled at 45 degrees provides better ergonomics

  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry

  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place

  • Fits in a standard autoclave and Arjo Tornado Washer
