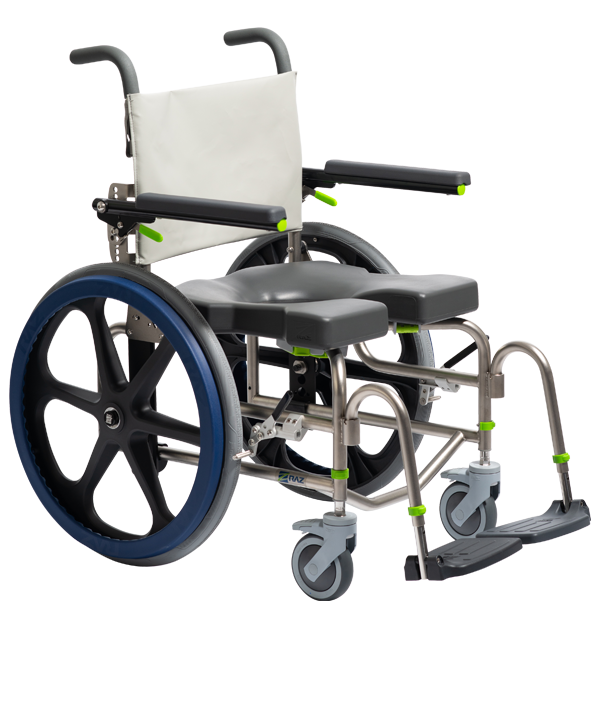

Raz-SP SELF-PROPEL MOBILE SHOWER COMMODE CHAIR

The RAZ-SP (Self-Propel) is available in 4 widths, 2 lengths and 2 height ranges. The stainless steel frame is designed with an unobstructed side as well as front access for the user or attendant

The RAZ-SP Self Propel Mobile Shower Commode Chair comes standard with 4” (10 cm) of height adjustment, tension-adjustable back upholstery, 22″ self-propelling rear wheels, 5” (125 mm) front dual-locking casters, flip-up padded armrests, and commode pan. The easy-to-clean, stainless steel frame is designed with unobstructed side and front access for the user or attendant.

  • Comes standard with Raz’s exclusive Ischial & Pelvic Alignment System (IPAS), provides 2″ (5cm) of fore/aft 1″ (2.5cm) of lateral seat adjustment

  • 22″ (56cm) or 24″ (61cm) rear wheels

  • Adjustable back angle

  • Flip-up padded armrests

  • 4″ of height adjustment

  • Easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.

  • Dual-locking swivel and roll 5″ (125mm) casters

Raz-SP Self Propel Mobile
Shower Commode Chair

Raz-SP VIDEO

Raz-SP STANDARD FEATURES

FIXED BACK

  • Molded, flexible vinyl upholstery – suitable for infection control environments

  • Provides flip-up angle adjustable armrests

  • 18″ Back Height

MOLDED SEAT

  • Contoured for pressure reduction and pelvic stability

  • Soft integral-skin foam for comfort and durability

  • Available with open or bridged front

  • Available Sizes: 18″ W x 16″ D, 18″ W x 19″ D

ISCHIAL PELVIC ALIGNMENT SYSTEM

  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis

  • Allows centering of the aperture (opening) around the users’ ITs

  • Seat locks in place for transfers

  • Removes easily for cleaning

  • Optional spacers for anterior or posterior seat angle adjustment

ADJUSTABLE FOOTRESTS

  • Removable for transfers and cleaning

  • Swing in and out easily

  • Flip-up footplate

  • Available in regular length 16″- 20.5” and extended length 18″- 22.5”

TELESCOPING CASTER EXTENSIONS

  • Provides 4″ of seat height adjustment without the use of tools

  • Dropped front frame tube improves access over standard toilet bowls

COMMODE PAN

  • Injection-molded pan is designed for function

  • Includes a lid for splash and odor control

  • Wide handle angled at 45 degrees provides better ergonomics

  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry

  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place

  • Fits in a standard autoclave and Arjo Tornado Washer

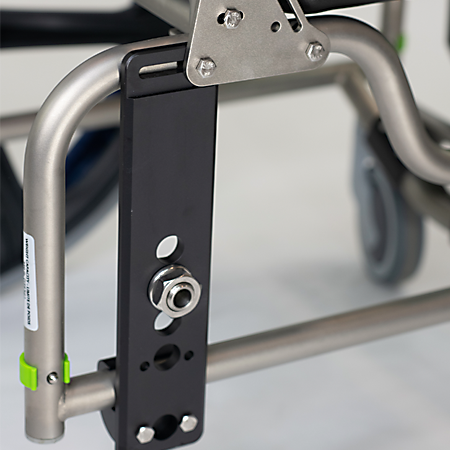

MULTI-POSITION AXLE PLATES

  • Provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user / toilet bowl access

  • Allow use of 22″ or optional 24″ rear wheels

  • Seat depth range: 11″-16″D

For more information on
Raz Mobile Shower Commode Chairs
