Trakz-AT (Attendant Tilt) and Trakz-AP (Attendant Propel) Tub Sliders

TRAKZ is a tub slider system that provides a practical and affordable solution for individuals with limited mobility to bathe independently in their homes. It eliminates the need for costly renovations while promoting accessibility and safety. Trakz’s versatile design and long-term durability make it ideal for those seeking a reliable and accessible bathing solution.

TRAKZ-AT ATTENDANT TILT

The Trakz-AT Attendant Tilt is a tub slider with dual-arc rotational tilt geometry.

  • 35° of Tilt – This is enough tilt to allow the client’s feet to clear the tub wall, which reduces the effort for the caregiver

  • Rotational Tilt GeometryAllows the chair to be located closer to the rear wall, leaving more room for the client’s feet and legs. It also allows Trakz to fit in smaller bathrooms and reduces the effort required to tilt the chair, allowing for single-handed activation.

TRAKZ-AP ATTENDANT PROPEL – NON-TILTING

  • With a non-tilting seat, the client’s legs must be lifted over the tub wall.

  • The tub base includes foot support receivers so that the foot supports can be moved from the mobile base to the tub base.

SHARED FEATURES OF THE TRAKZ MODELS:

  • Toolless height adjustment of both bases to facilitate set-up

  • Wrap around, swing-away arm supports, which can be removed to reduce the overall width of the mobile base to 20.75”

  • Dual-locking, Tente casters

  • 18”W molded vinyl back support

  • Toolless adjustable foot supports

  • Soft molded seat contoured for pressure reduction and pelvic stability

  • Injection molded commode pan designed for function

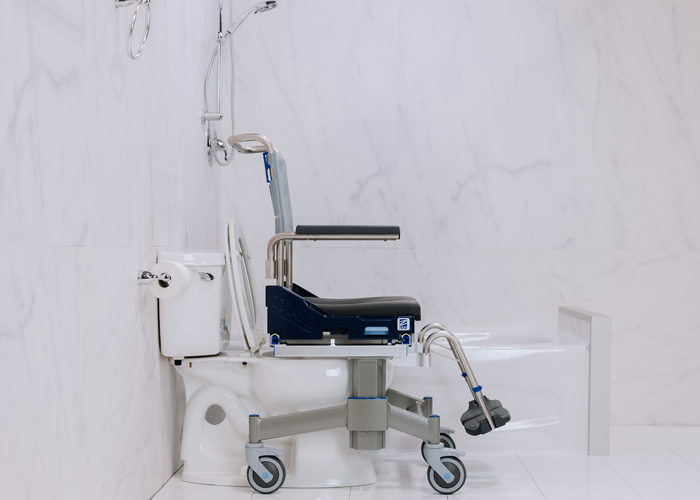

Raz Trakz-AP Attendant Propel

The Trakz patented ZbrilokTM prevents the seat and user from moving onto the bridge unless the bridge is securely latched to both the tub base and the mobility base.

ZBRILOK OPEN
ZBRILOK CLOSED

Trakz offers multiple bridge lengths and custom lengths. You can choose from seven standard lengths: 7” / 8.5” / 9.5” / 10.5” / 12.5” / 14.5” / 16.5”.

Trakz-AT (Attendant Tilt) and Trakz-AP (Attendant Propel) TUB SLIDER STANDARD FEATURES

BACK SUPPORTS

  • 18″ W Molded, flexible vinyl upholstery – suitable for infection-control environments

MOLDED SEAT

  • Contoured for pressure reduction and pelvic stability

  • Soft integral-skin foam for comfort and durability

  • Available with open or bridged front

  • Size: 18″ W x 17″ D

  • Removable seat pad for easy of cleaning

URINE MANAGEMENT OPTIONS

  • Whizard (winged urine deflector) – Patent-pending lateral wings that are positioned under the medial aspect of the thighs to keep the Whizard in place.

  • SplaShield – Molded urine deflector (must be held in place during use)

  • Splash Curtain – Vinyl curtain, slides into commode pan brackets

ADJUSTABLE FOOTRESTS

  • Toolless leg length adjustment

  • Removable for transfers and cleaning

  • Swing in and out easily

HEAD SUPPORT

  • Standard small head support pad size is 10” W x 4” H

  • Head support is shaped to cradle the head and can be adjusted for optimal client fit

  • Optional large head support size is 12” W x 6” H

COMMODE PAN

  • Injection-molded pan is designed for function

  • Includes a lid for splash and odor control

  • Wide handle angled at 45 degrees provides better ergonomics

  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry

  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place

  • Fits in a standard autoclave and Arjo Tornado Washer
