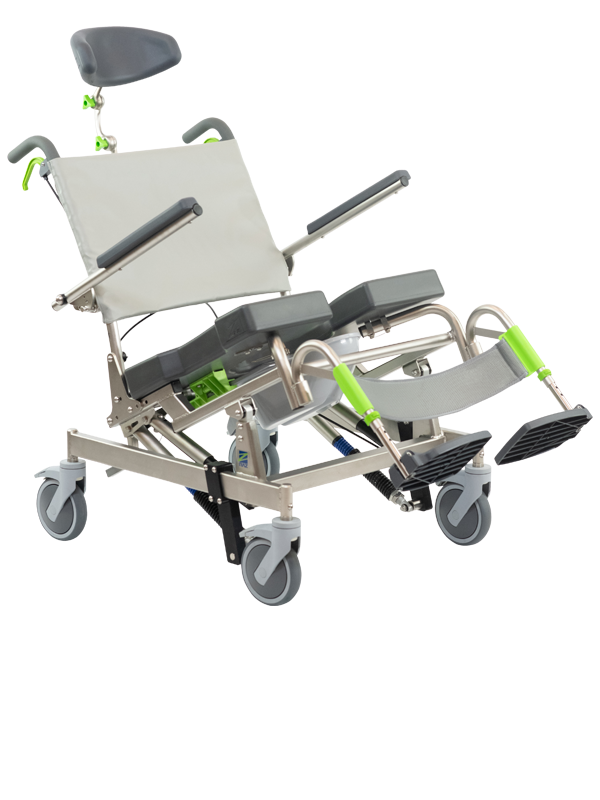

RAZ-AT600 ATTENDANT TILT BARIATRIC MOBILE SHOWER COMMODE CHAIR
Raz-AT600 – Bariatric Mobile Shower Commode Chair (300-600 lb weight capacity) with stainless steel frame and components, 25° tilt range, four locking 6” (150mm) casters, and commode pan.
The RAZ-ST600”s specially engineered, Weight Assist Spring System (WASS) is available in two weight ranges and is adjustable to accommodate the user’s weight and Center of Mass (CoM) for tilt operation with minimal effort by the attendant. Headrest pad (10” x 4”), stainless steel headrest fixture, Tilt Assist Pedal and HD Footrests (Z709N) are included.
22″ (56cm) Polished Stainless Steel frame with 4″ (10cm) of height adjustment
Raz’s exclusive Ischial & Pelvic Alignment System (IPAS), provides 2″ (5cm) of fore/aft 1″ (2.5cm) of lateral seat adjustment
Easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
Utilizes the Raz specially engineered Weight Assist Spring System (WASS) and is available in two weight ranges
Tension adjustable back upholstery
Adjustable back angle
Molded (10″ x 4″) headrest pad and stainless steel headrest fixture
5″ Dual-locking (swivel and roll) casters
Flip-up arms with optional locks
Raz-AT600 Attendant Tilt
Bariatric Mobile Shower Commode Chair
Raz-AT600 STANDARD FEATURES
TILT FUNCTION
Seat frame tilts for extra pressure reduction and comfort
Locking pneumatic springs provide infinite adjustment up to 25°
Pressurized springs also help lift seat frame to an upright position
Conveniently located tilt triggers provide smooth tilt control
ISCHIAL PELVIC ALIGNMENT SYSTEM
Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
Allows centering of the aperture (opening) around the users’ ITs
Seat locks in place for transfers
Removes easily for cleaning
Optional spacers for anterior or posterior seat angle adjustment
TENSION ADJUSTABLE BACK SUPPORT FABRIC
Vinyl-coated fabric for durability, comfort and better infection control
Provides individualized trunk support for optimal positioning and comfort
Removable for machine washing
20” back heights
MOLDED SEAT
Contoured for pressure reduction and pelvic stability
Soft integral-skin foam for comfort and durability
Available with open or bridged front
Available Sizes: 18″ W x 16″ D, 18″ W x 19″ D
TILT ASSIST PEDAL
Helps attendant initiate tilt for heavier users or users with a forward weight distribution
Enables attendant to use additional strength from legs to tilt larger/heavier users
Solid stainless steel construction fits directly into chair frame
Anti-slip tread on pedal
ADJUSTABLE FOOTRESTS
Removable for transfers and cleaning
Swing in and out easily
Flip-up footplate
Available in regular length 16″- 20.5” and extended length 18″- 22.5”
HEADREST – SMALL
Headrest size is approximately 10” W x 4” H
Integral skin foam headrest is easy to clean
Headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
Headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
Headrest angle can be adjusted for comfort
Headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models
ADJUSTABLE PIVOT POSTS
Provides 3″ of vertical seat adjustment
Provide 4” of seat height adjustment without frame / toilet bowl interference
COMMODE PAN
Injection-molded pan is designed for function
Includes a lid for splash and odor control
Wide handle angled at 45 degrees provides better ergonomics
Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
Fits in a standard autoclave and Arjo Tornado Washer
