Raz-ART ATTENDANT ROTATIONAL SHOWER COMMODE CHAIR

The Raz-ART (Attendant Rotational Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes a patented, dual-arc, orbital tilt system that allows for the smallest footprint and lowest tilt effort of any chair on the market.

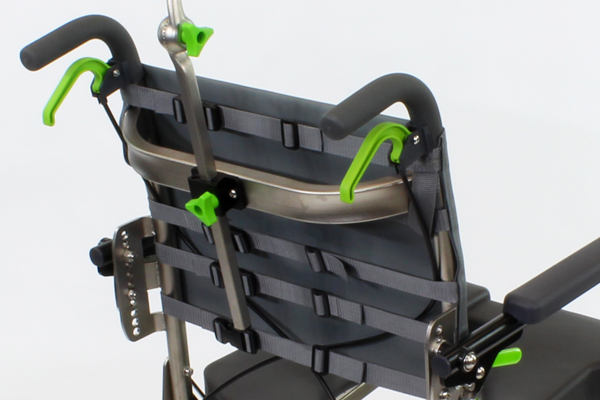

The Raz-ART Mobile Shower Commode Chair comes standard with the Ischial & Pelvic Alignment System (IPAS), adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, aluminum frame fits over most toilets and is designed for easy side and front access by the user or attendant.

  • Patented Tilt Geometry: Dual arc, orbital tilt, minimizes center-of-mass movement throughout the range

  • Extremely Low Tilt Effort –  40° tilt range

  • Small Footprint provides unparalleled maneuverability

  • Lightweight, Invertible Aluminum Frame provides two tool-less height ranges totaling 7″ (18cm)

  • Flip-Up Arm Supports with optional locks

  • Adjustable Back Angle

  • Compatible With All Standard Width Raz Seats, which include the exclusive IPAS

  • Backrest With 3” (7.5 cm) Fore/Aft Adjustment to vary seat depth

  • Dual-locking swivel and roll 5″ (125mm) casters

Raz-ART Rotational Mobile Shower Commode Chair VIDEO

Raz-ART STANDARD FEATURES

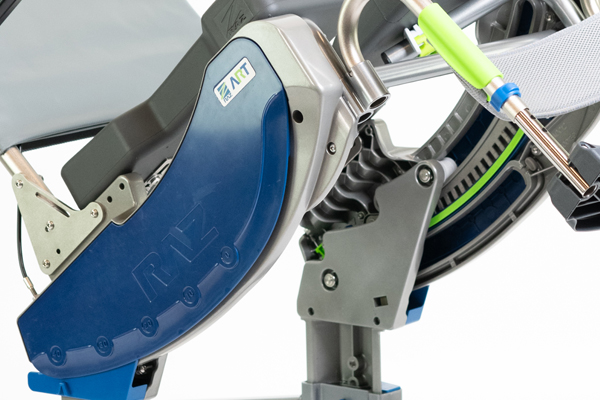

TILT FUNCTION

  • Seat frame tilts for extra pressure reduction and comfort

  • Locking pneumatic springs provide infinite adjustment up to 40°

  • Pressurized springs also help lift seat frame to an upright position

  • Conveniently located tilt triggers provide smooth tilt control

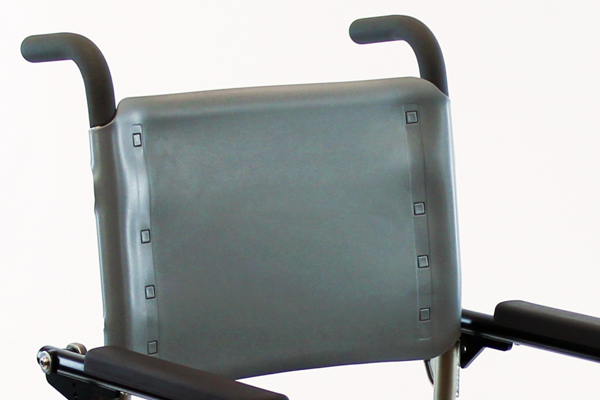

FIXED BACK

  • Molded, flexible vinyl upholstery – suitable for infection control environments

  • Provides flip-up angle adjustable armrests

  • 18″ Back Height

MOLDED SEAT

  • Contoured for pressure reduction and pelvic stability

  • Soft integral-skin foam for comfort and durability

  • Available with open or bridged front

  • Available Sizes: 18″ W x 16″ D, 18″ W x 19″ D

ISCHIAL PELVIC ALIGNMENT SYSTEM

  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis

  • Allows centering of the aperture (opening) around the users’ ITs

  • Seat locks in place for transfers

  • Removes easily for cleaning

  • Optional spacers for anterior or posterior seat angle adjustment

HEADREST – SMALL

  • Headrest size is approximately 10” W x 4” H

  • Integral skin foam headrest is easy to clean

  • Headrest is shaped to cradle the head and can be adjusted to fit looser or tighter

  • Headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range

  • Headrest angle can be adjusted for comfort

  • Headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models

ADJUSTABLE FOOTRESTS

  • Removable for transfers and cleaning

  • Swing in and out easily

  • Flip-up footplate

  • Available in regular length 16″- 20.5” and extended length 18″- 22.5”

COMMODE PAN

  • Injection-molded pan is designed for function

  • Includes a lid for splash and odor control

  • Wide handle angled at 45 degrees provides better ergonomics

  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry

  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place

  • Fits in a standard autoclave and Arjo Tornado Washer
