RAZ-SP SELF PROPEL MOBILE SHOWER COMMODE CHAIR
The Raz-SP (Self-Propel) mobile shower commode chair offers the highly convenient Adjusta-Back adjusting to 85°, 90° and 95° back angle to suit a users specific needs.
22″ (56cm) or 24″ (61cm) rear wheels
Comes standard with Raz’s exclusive Ischial & Pelvic Alignment System (IPAS), provides 2″ (5cm) of fore/aft 1″ (2.5cm) of lateral seat adjustment
Adjustable back angle
Flip-up padded armrests
4″ of height adjustment
Dual-locking swivel and roll casters
Easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
VIDEO
RAZ-SP STANDARD FEATURES
ADJUSTA-BACK

Adjusts to 85°, 90°, AND 95° back angle to suit users needs
Armrest adjusts in height and angle
Includes locking armrest feature
Available in 17″ and 20″ back height
HARMONY BACK

Molded foam backrest provides contoured support as an alternative to tension-adjustable back upholstery
Ideal for infection control environments
Available in 18″W (46cm) only, can be installed at 17″ (43cm) and 20″ (51cm) back heights
MOULDED SEAT

Contoured for pressure reduction and pelvic stability
Soft integral-skin foam for comfort and durability
Available with open or bridged front
Available Sizes: 18″ W x 16″ D, 18″ W x 19″ D

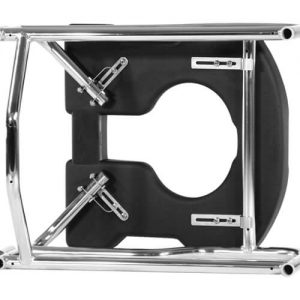

ISCHIAL PELVIC ALIGNMENT SYSTEM

Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
Allows centering of the aperture (opening) around the users’ ITs
Seat locks in place for transfers
Removes easily for cleaning
Optional spacers for anterior or posterior seat angle adjustment
ADJUSTABLE FOOTRESTS

Removable for transfers and cleaning
Swing in and out easily
Flip-up footplate
Available in regular length 16″- 20.5” and extended length 18″- 22.5”

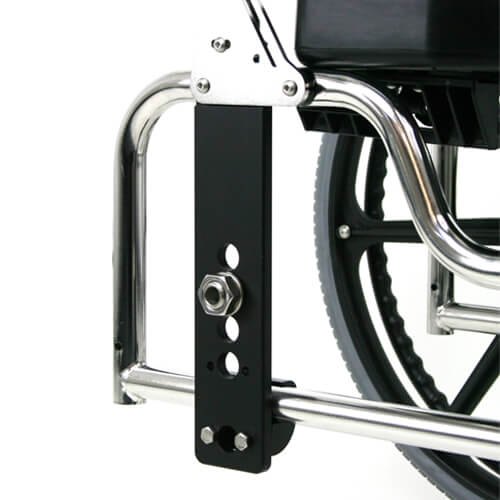

MULTI-POSITION AXLE PLATES

Provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user / toilet bowl access
Allows use of 22″ or optional 24″ rear wheels
COMMODE PAN

Injection-molded pan is designed for function
Includes a lid for splash and odor control
Wide handle angled at 45 degrees provides better ergonomics
Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
Fits in a standard autoclave and Arjo Tornado Washer
