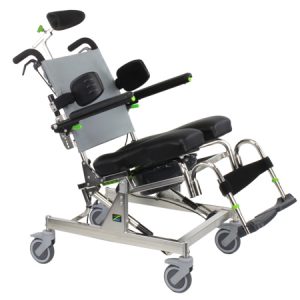

RAZ-AT600 BARIATRIC ATTENDANT TILT MOBILE SHOWER COMMODE CHAIR UP TO 600 LB CAPACITY
The Raz-AT600 is a heavy duty mobile shower commode chair offers a 25° tilt range to provide extra pressure reduction and comfort. The AT600 has a 300 – 600 lb weight capacity. The unique stainless steel frame and components utilizes the Raz specially engineeered Weight Assist Spring System (WASS) and is available in two weight ranges. The AT600 is adjustable to accomodate the users weight and Center of Mass( CoM) for tilt operation with minimal effort by the attendant.
22″ (56cm) Polished Stainless Steel frame with 4″ (10cm) of height adjustment
Comes standard with Raz’s exclusive Ischial & Pelvic Alignment System (IPAS), provides 2″ (5cm) of fore/aft 1″ (2.5cm) of lateral seat adjustment
Easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
Utilizes the Raz specially engineeered Weight Assist Spring System (WASS) and is available in two weight ranges
Tension adjustable back upholstry
Adjustable back angle
Molded (10″ x 4″) headrest pad and stainless steel headrest fixture
5″ Dual-locking (swivel and roll) casters
Flip-up padded armrests
VIDEO
RAZ-AT600 STANDARD FEATURES
TILT FUNCTION

Seat frame tilts for extra pressure reduction and comfort
Locking pneumatic springs provide infinite adjustment up to 25°
Pressurized springs also help lift seat frame to an upright position
Conveniently located tilt triggers provide smooth tilt control

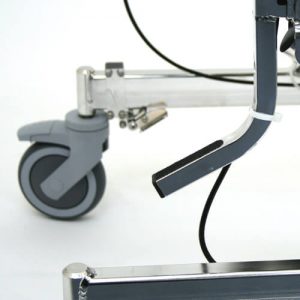

TILT ASSIST PEDAL

Helps attendant initiate tilt for heavier users or users with a forward weight distribution
Enables attendant to use additional strength from legs to tilt larger/heavier users
Solid stainless steeel construction fits directly into chair frame
Anti-slip read on pedal
ISCHIAL PELVIC ALIGNMENT SYSTEM

Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
Allows centering of the aperture (opening) around the users’ ITs
Seat locks in place for transfers
Removes easily for cleaning
Optional spacers for anterior or posterior seat angle adjustment
MOLDED SEAT

Contoured for pressure reduction and pelvic stability
Soft integral-skin foam for comfort and durability
Available with open or bridged front
Available Sizes: 23″ W x 18″ D, 26″ W x 18″ D

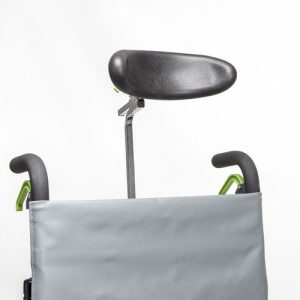

HEADREST (Small – Standard)

Headrest size is approximately 10” W x 4” H
Integral skin foam headrest is easy to clean
Shaped to cradle the head and can be adjusted to fit looser or tighter
Angle can be adjusted for comfort
Mounting fixture are included with Raz-AT and Raz-AT600 chairs and optional on all other Raz models
COMMODE PAN

Injection-molded pan is designed for function
Includes a lid for splash and odor control
Wide handle angled at 45 degrees provides better ergonomics
Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
Fits in a standard autoclave and Arjo Tornado Washer

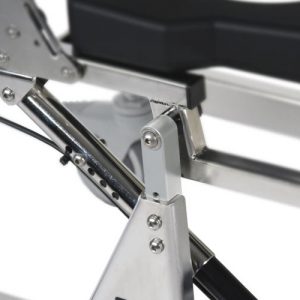

ADJUSTABLE PIVOT POSTS

Adjustable Pivot Posts offers 21.75 or 22.75″ seat to floor heights

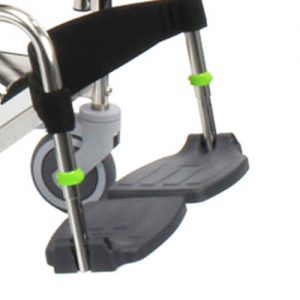

ADJUSTABLE FOOTRESTS

Removable for transfers and cleaning
Swing in and out easily
Flip-up footplate
Available in regular length 16″- 20.5” and extended length 18″- 22.5”
